CompactLow-torque
HTR3.7
HTR3.7-90-TG22V-C1000
~ 3,700 in-lb output torque
Best for: End-of-arm tooling, small clamping, indexing and light industrial automation.
Request quote for HTR3.7
Parker HTR Series · Official Distributor
Hydraulic Rack & Pinion Rotary Actuators
Three configured HTR models — HTR3.7, HTR10 and HTR30 — with 90° rotation, TG face mount, fluorocarbon seals and adjustable end-of-stroke cushions. Priced and shipped by HidroNEX.
About HidroNEX
Full-service hydraulic systems — supplied, serviced and supported
With more than 10 years of experience, HidroNEX delivers hoses, fittings, hydraulic components and full equipment repair services, built around each customer and the demands of their market.
As an official Parker Hannifin distributor, we have direct access to industry-leading hydraulic products and engineered solutions — giving you factory-authentic components, full warranty and expert configuration advice for your exact application.
10+
Years of experience
250+
Completed projects
15+
Countries served

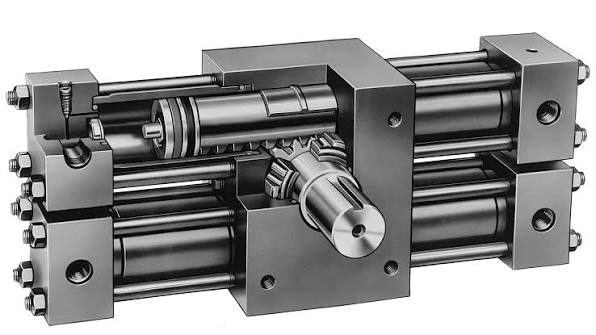

About the HTR series
Purpose-built rotary power for the most demanding hydraulic applications
The Parker HTR series delivers precise, high-torque rotary motion using a proven rack & pinion design. From compact automation to heavy industrial handling, these actuators combine a shock-resistant ductile iron housing, large tapered roller bearings and adjustable cushions for reliable service in the harshest environments.
As an official Parker Hannifin distributor, HidroNEX supplies factory-spec HTR actuators with full warranty, technical support and configuration advice for your exact application.
Typical applications
- Steel & casting handling
- Marine & offshore boom slewing
- Oil & gas valve actuation
- Mobile equipment (aerial lifts, refuse tippers)
- Solar panel rotation
- Water & flood-gate management
- Tunnel boring & long-hole drilling
- Plastics — blow & injection molding
Engineering features
Built to keep working, engineered to be serviced
Rack & Pinion
Through-hardened, high-strength alloy steel rack and pinion for long service life in demanding applications.
Ductile Iron Housing
Heavy, shock-resistant housing drives large output torque and shrugs off harsh operating environments.
Tapered Roller Bearings
Generously sized bearings support large external axial and radial loads on the shaft.
Adjustable Cushions
Floating cushion bushing acts as a high-performance check valve with a needle-valve exhaust for tunable deceleration.
Replaceable Wear Parts
Bronze rack bearing, PTFE wear bands and dual-lip pinion seals designed for in-field service.
Fluorocarbon Seals
22V seal package rated for high-temperature and synthetic hydraulic fluids common in industrial hydraulic circuits.
Available now
Three configured HTR models
All three share the same core configuration — 90° rotation, TG face mount, single male keyed shaft, fluorocarbon seals and end-of-stroke cushions. Pick the model that matches your torque requirement.
Mid-rangeMedium-torque
HTR10
HTR10-90-TG22V-C1000
~ 10,000 in-lb output torque
Best for: Tube bending, conveyor swing & rotate, valve actuation and mobile equipment.
Request quote for HTR10High-torqueHeavy duty
HTR30
HTR30-90-TG22V-C1000
~ 30,000 in-lb output torque
Best for: Steel & casting handling, marine boom slewing, oil & gas process valves, granite block rollover.
Request quote for HTR30Compare
Specifications side-by-side
Confirmed configuration values from the Parker HTR-series catalogue. Application-specific values (weight, dimensional envelope, kinetic energy capacity) confirmed on quote.
| Series | HTR3.7 | HTR10 | HTR30 |
|---|---|---|---|
| Configuration code | HTR3.7-90-TG22V-C1000 | HTR10-90-TG22V-C1000 | HTR30-90-TG22V-C1000 |
| Rotation | 90° | 90° | 90° |
| Actuator type | Hydraulic rack & pinion | Hydraulic rack & pinion | Hydraulic rack & pinion |
| Max working pressure | 3000 psi (207 bar) | 3000 psi (207 bar) | 3000 psi (207 bar) |
| Nominal output torque | ~ 3,700 in-lb | ~ 10,000 in-lb | ~ 30,000 in-lb |
| Housing | Ductile iron | Ductile iron | Ductile iron |
| Mounting (TG) | Face + threaded | Face + threaded | Face + threaded |
| Shaft (2) | Single male keyed | Single male keyed | Single male keyed |
| Seal package (V) | Fluorocarbon (Viton) | Fluorocarbon (Viton) | Fluorocarbon (Viton) |
| Cushions (C1000) | Both ends, adjustable | Both ends, adjustable | Both ends, adjustable |
| Port style | SAE straight thread | SAE straight thread | SAE straight thread |
Documentation
HTR-Series catalogue (Parker HY03-1800-2US)
Full ordering information, dimensional data, engineering data and options for the complete HTR series.
HTR-Series-Catalogue.pdf
Parker · HY03-1800-2US · PDF
